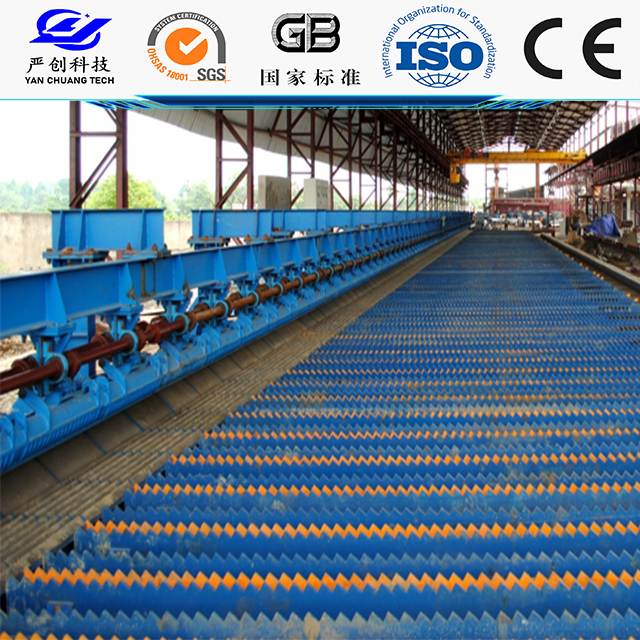

Twin Channel - Cooling Bed Charging Mechanism

Charging Bar Tyoe: Deformed Rebar ,  Round Bar

Charging Bar Size : 8 -32mm

Transmision  Type: Hydraulic or by Electro-Mechanical Drive through DC Motors

Cooling bed length : 18 mtr - 120 mtr

Cooling bed width  : 5 mtr - 12 mtr

Bar Rolling Charging Speed : 5 - 30 m/s

Charging to the Cooling Bed : 3 - 6 sec / cycle

Features / Specification

There are ample of features and advantages that make our twin channels the most advanced one in the entire industry. Some of the striking features embarked with our manufactured TWIN Channels are as following:

• Twin water-cooled C-type channels with water cooling arrangement

• Supporting arrangement for the twin-channel and drive system

• Cam device for opening closing of the pipes

• Hydraulic Drive for operation of the cams

• Prevention from warping

• Highest level of safety

• Closed channel for transferring bars

• Can be attached to braking pinch rolls

The cold bed is one of the indispensable auxiliary equipment for small and medium-sized bar workshops. Its function is to cut the bar of multiple feet length by flying shears after rolling mill, transport and unload it to the cold bed rack for cooling, so that its temperature is reduced from 900℃ to 100 ~ 300℃, and then collected by the cold bed feeding device and sent to the output roller, and then sent to the output roller to the cold shear cut into a size of finished products. The design quality and installation accuracy of the cold bed directly determine the final quality of the product.

• Run- In Roller Tables – having apron type diverters or twin channels as bar delivery systems.
• Aligning Roller Table – for uniform alignment of bar ends.
• Transfer out Device / Layer Transfer – For transferring bars after Alignment to Run Out Roller Table.
• Run Out Roller Table: For Feeding the Bars to Cold Shear.
