Chain Transfer - Cooling Bed Charging Mechanism

Cooling Bed Charging System:

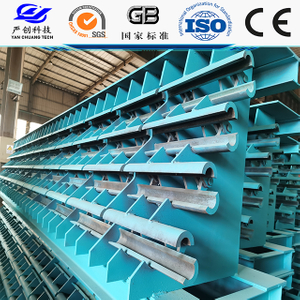

1. Twin-Channel Bar Receiving Mechanism:

   operated either by Hydraulic or by Electro-Mechanical Drive through DC Motors. The Flappers are made from SG Iron Material, giving excellent wear resistance and long life.

2. 2/4-Channel Bar Kick-off Mechanism (Pneumatic):

   This type of Bar Handling system is used for Rolling Mills with 1/2 Strand Billet Rolling. its common used in steel plant.

3. 2/4-Channel Bar Kick-off Mechanism (Closed type):

   This type of Bar Handling system is used for Rolling Mills with 2 Strand Billet Rolling. for the high speed rolling as in 30m/s.
4. Braking Slide(Pneumatic) / Hydraulic Apron Type:
   This type of Bar Receiving mechanism is widely used for Merchant Mills producing both Sections and TMT Bar as well as Light Section Mill.
5. Rotary Drum Type:
   This type of mechanism is using for the high speed rolling as in 45m/s.

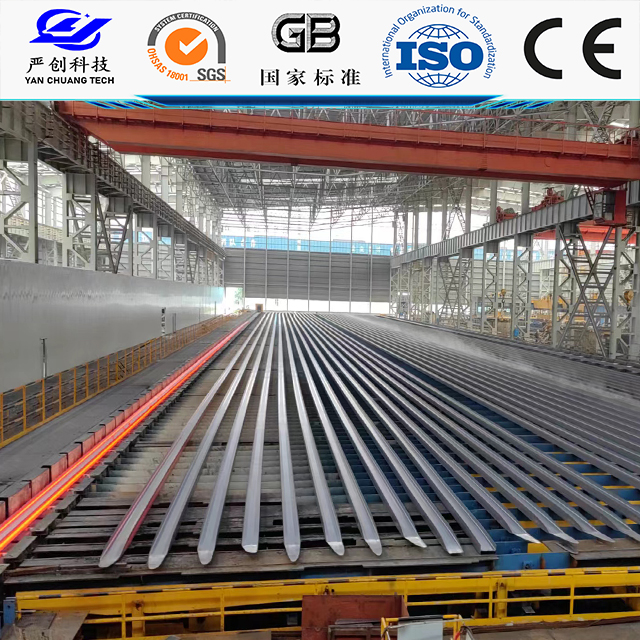

1. Rake Type Automatic Cooling Bed （Walking Beam）:
   Automatic rake type cooling beds are highly automated, ensuring transfer of material by one pitch for every rake movement.
2. Chain Transfer Cooling Bed:
   Chain type cooling beds are highly automated, ensuring transfer of material by shifting certain distance. Used for Heavy Sections such as Big Angles, Channel, and I Beams.
3. Claw Type Cooling Bed:
   Claw type cooling beds are highly automated, ensuring transfer of material by shifting certain distance, by the pinion and cam shaft. Used for Heavy Sections such as Big Angles, Channel, and I Beams.

Cooling Bed Discharge System:

1. Trolley Transfer:
2. Dropping Baffer:

3. Chain Transfer:

4. Rotary Shifting:




Auxilliary Machinery Equipment:
