Product Description
Charging Bar Tyoe: Deformed Rebar , Round Bar， Angle Bar, Channel Bar, H-Beam, ETC...
Charging Bar Size : 8 - 40mm, #4 - #15 , 80 - 230
Transmision Type: Hydraulic / Pneumatic
Cooling bed length : 18 mtr - 120 mtr
Cooling bed width : 5 mtr - 12 mtr
Bar Rolling Charging Speed : 8 - 30 m/s
Charging to the Cooling Bed : 3 - 8 sec / cycle
The apron guide system in the apron cooling bed steel equipment of the production line is often unstable. The bevel, large side and pin holes of the skirt are seriously worn, and the long shaft system of the skirt is vibrating greatly.
By reducing the elevation of the accelerating roller surface, the downward motion of the skirt plate is increased by 40mm, which solves the problem of the steel bar jumping out of the groove. The service life of the skirt bevel and the large side, the guide bevel and the single-tooth straightening plate are increased by grooving alloy strips. The vibration of the skirt long axis system is reduced by moving the support of the skirt cylinder close to the lower support of the roller table beam. The maintenance time of skirt system is reduced and the operation rate is increased.

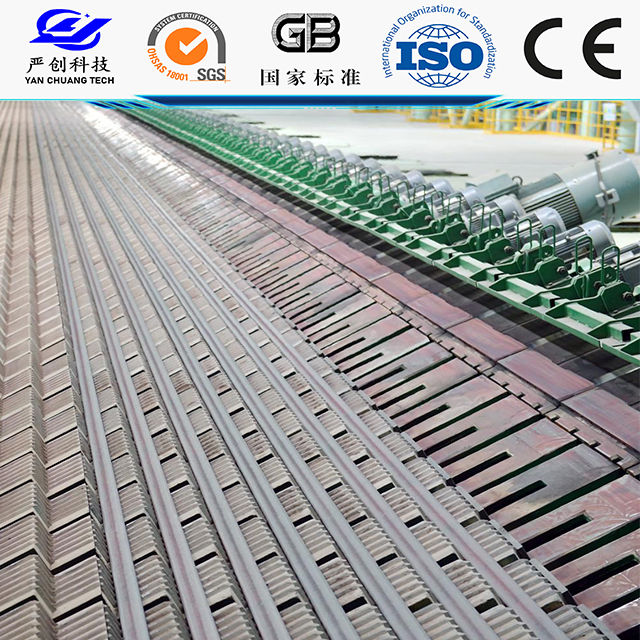

Cooling Bed Type
The cooling bed is one of the indispensable auxiliary equipment for small and medium-sized bar workshops. Its function is to cut the bar of multiple feet length by flying shears after rolling mill, transport and unload it to the cold bed rack for cooling, so that its temperature is reduced from 900℃ to 100 ~ 300℃, and then collected by the cold bed feeding device and sent to the output roller, and then sent to the output roller to the cold shear cut into a size of finished products. The design quality and installation accuracy of the cold bed directly determine the final quality of the product.
Cooling Bed Charging System:
Twin-Channel Bar Receiving Mechanism:
operated either by Hydraulic or by Electro-Mechanical Drive through DC Motors. The Flappers are made from SG Iron Material, giving excellent wear resistance and long life.
2/4-Channel Bar Kick-off Mechanism (Pneumatic):
2/4-Channel Bar Kick-off Mechanism (Closed type):
Cooling Bed Discharge System:
Chain Transfer:
Rotary Shifting:
Auxilliary Machinery Equipment:
