Rotary Drum （ Ultra High Speed ） - Cooling Bed charging mechanism

Charging Bar Tyoe: Deformed Rebar ,  Round Bar

Charging Bar Size : 8 - 25mm

Transmision  Type: gear box + servo motor

Cooling bed length : 18 mtr - 120 mtr

Cooling bed width  : 5 mtr - 12 mtr

Bar Rolling Charging Speed : 30 - 50 m/s

Charging to the Cooling Bed : 1 - 3 sec / cycle

1. Better control of bar tolerances, as each line is equipped with a high-speed finishing mill with much higher accuracy than a conventional mill. When using the two-wire to four-wire slitting process, the yield is determined by the smallest size of the bar, which results in the bar being larger on average than required. For all products sold according to the weight of the business, better rolling dimensional tolerances will lead to a considerable improvement in the yield.

2. Because the high-speed steel loading system does not need to use the cutting guide and torsion guide, the guide consumption is lower.

3. Because each billet has only one short ruler, and the number of multi-wire cutting short ruler is consistent with the number of cutting lines, fewer short ruler are used in the high-speed steel loading system.

4. Since only one piece of steel is added to each slot, the yield is higher. Multiple pieces of steel in one slot can cause stacking and misalignment of rolled pieces, resulting in subsequent shear, technical and bundling difficulties.

The double high drum arrangement includes:

• Two groups of drum, the two groups of drum parallel mounted on the beam above the cold bed, the distance between the two groups of drum center line is the first preset value,

• a group of drum comprises two drum body, drum gear box, drum support structure and transmission motor, the transmission motor and the drum gear box are fixed on the drum support mechanism.

• The drive motor controls the rotation of the rotating drum body through the rotating drum gear box;

• The two rotating drum bodies are symmetrically arranged, the outer side of the rotating drum body is arranged with a slide plate, the slide plate is fixed connected with the rotating drum support structure, the slide plate is positioned on the cold bed of the even number of moving teeth rack, the rotating drum body is installed with a throwing steel sensor; It has the advantages of simple structure, good heat dissipation and easy maintenance.

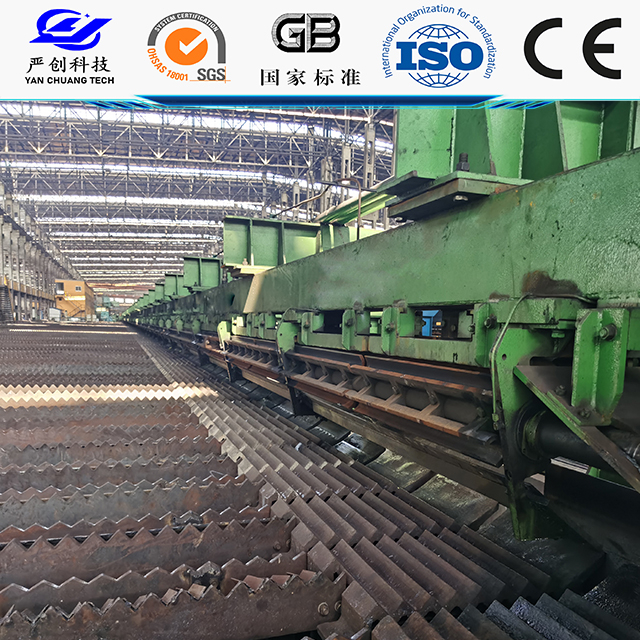

The cooling bed is one of the indispensable auxiliary equipment for small and medium-sized bar workshops. Its function is to cut the bar of multiple feet length by flying shears after rolling mill, transport and unload it to the cold bed rack for cooling, so that its temperature is reduced from 900℃ to 100 ~ 300℃, and then collected by the cold bed feeding device and sent to the output roller, and then sent to the output roller to the cold shear cut into a size of finished products. The design quality and installation accuracy of the cold bed directly determine the final quality of the product.

• Run- In Roller Tables – having apron type diverters or twin channels as bar delivery systems.
• Aligning Roller Table – for uniform alignment of bar ends.
• Transfer out Device / Layer Transfer – For transferring bars after Alignment to Run Out Roller Table.
• Run Out Roller Table: For Feeding the Bars to Cold Shear.
