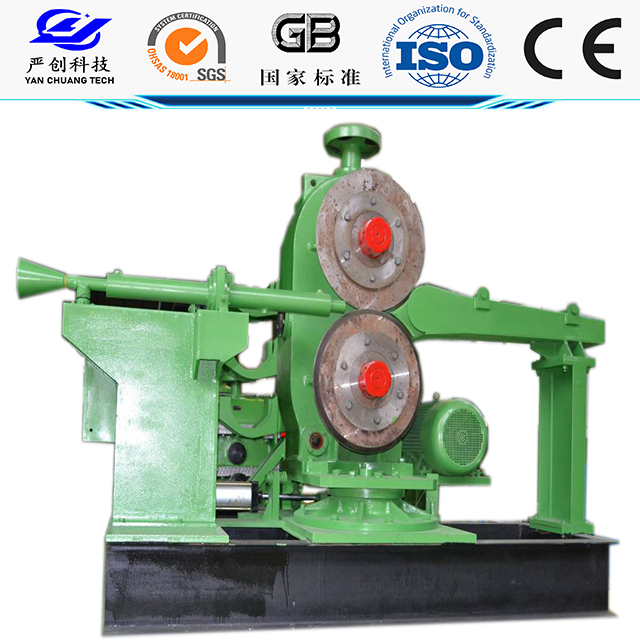

Product Description
Main performance parameters：
Model ： YPFJ
Shear Type：Rotary Blade Shifting
Cutting function： Cutting head, cutting tail, breaking
Work system： continuous work system
Shear Area ： ≤2250 mm2
Shear temperature： ≥850℃
Shear speed ： V= 2.15 ~ 8.0 m/s
Blade diameter ： ≥600 mm
Length of cutting head ： ≤400 mm adjustable
Length of waste cutting ： ≤950 mm
Selected motor technical parameters:
Model ：
Rated power ：150KW
Rated speed ：600r/min
Rated voltage ： 440V
Parameter
| No | Name | Working Type | Location After | Shear Section | Shear Speed |
| 1 | 1# Flying Shear | Crank | Roughing Mill | <Φ140mm | 0.4 - 3.0m/s |
| 2 | 2# Flying Shear | Rotary | Imtermediate Mill | <Φ55mm | 3 - 8 m/s |
| 3 | 3# Dividing Flying Shear | Crank / Rotary | Finishing Mill | <Φ70mm | 3 - 20 m/s |
| 4 | Gantry Flying Shear | Crank | Roughing Mill | <Φ200mm | 0.5 - 1.8 m/s |
