Product Description

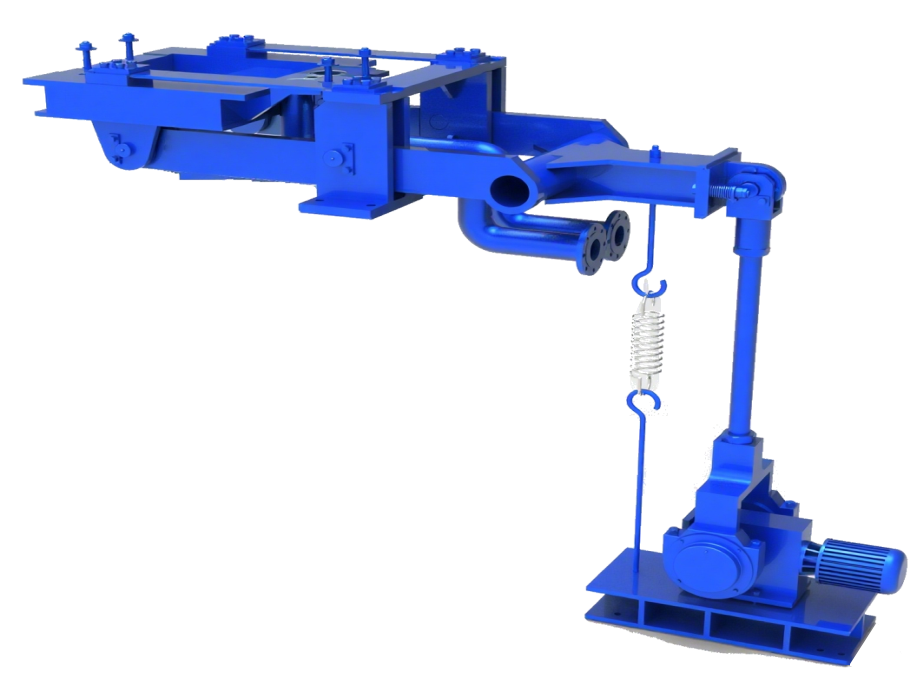

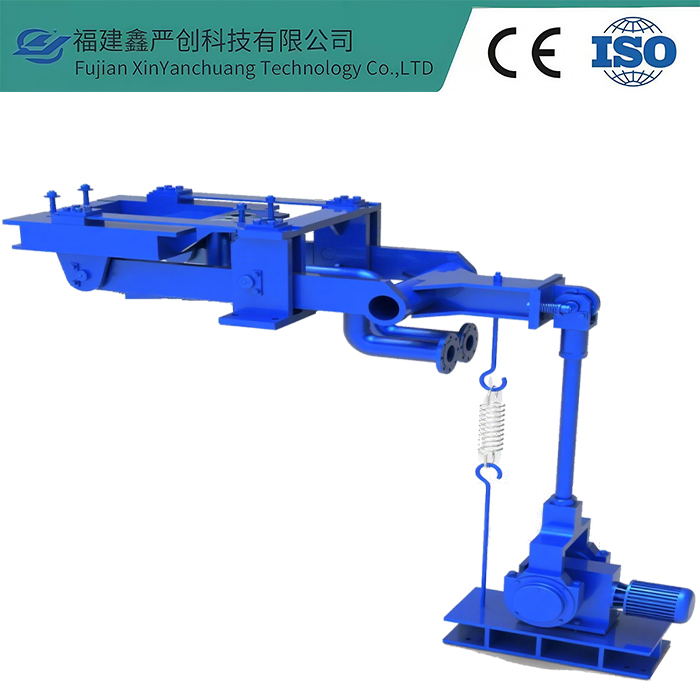

Half-Plate Spring Oscillator

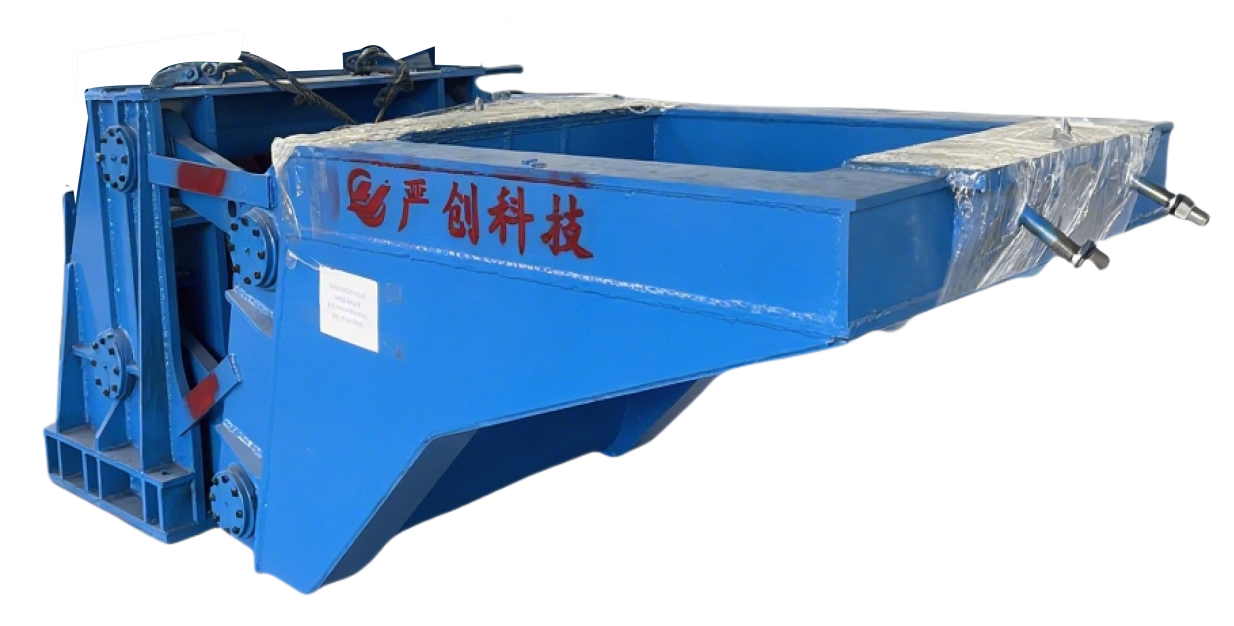

Four(4) Linked Rod Oscillator
A variable-frequency motor with a reducer is adopted to drive the transmission shaft equipped with an eccentric sleeve to perform circular motion. Different vibration frequencies are achieved by changing the motor's rotational speed through a frequency converter. The equipment has high stability and a large load capacity.
Equipment Features：
The structure is simple, the system composition is concise, the equipment stability is high, the system response is fast, and the load-bearing capacity is strong. It is suitable for beginner. The drawbacks are that the amplitude cannot be adjusted online and non-sinusoidal vibration curves cannot be achieved.

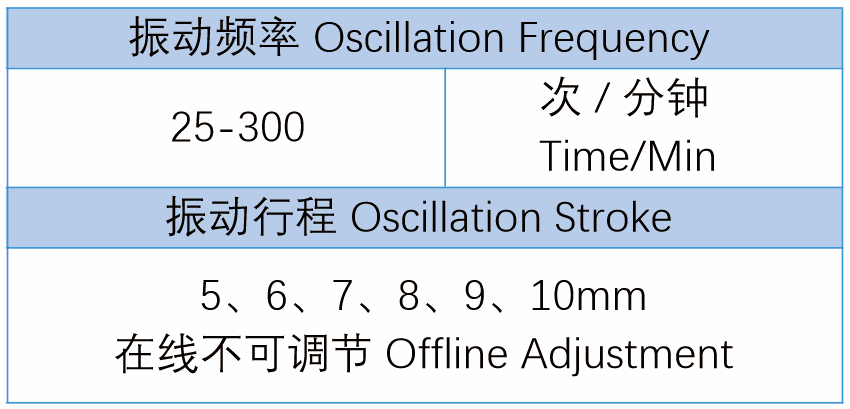

Technical Specification：
Servo Motor Driven

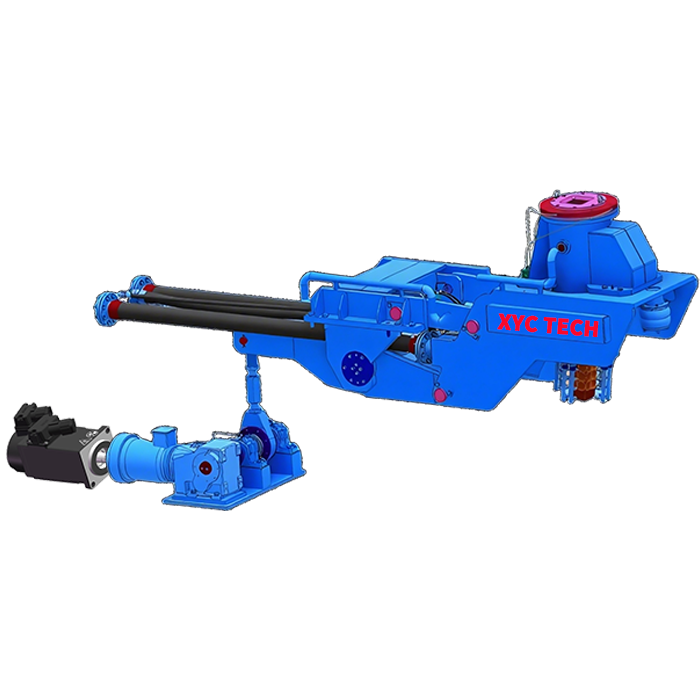

Servo Motor Drive Oscillator
The high-torque, low-speed AC permanent magnet synchronous servo motor directly drives the large eccentricity eccentric shaft (sleeve) to perform reciprocating rotational motion within a rotation Angle of ±90°. Combined with a specific control model, the same vibration effect as that driven by digital electric cylinders and servo hydraulic cylinders can be achieved.
Equipment Features：
Adopts the traditional mechanical vibration structure principle, discarding the screw pair and avoiding its drawbacks. The device structure has the advantages of large bearing capacity, strong impact resistance and high reliability.

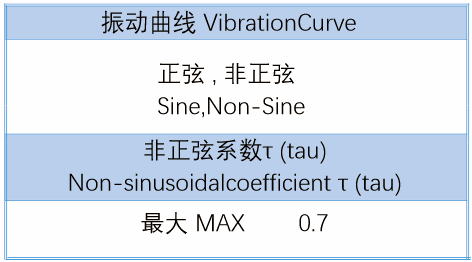

Technical Specification：
