Product Description

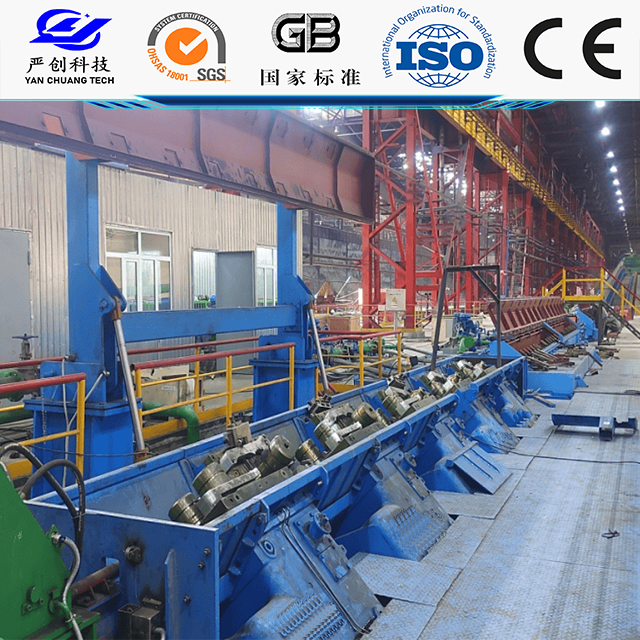

Super heavy 45° top crossing cantilever mill (Module Block Mill), as a high-speed wire and high-speed bar finishing mill and finished mill, the production of reinforced concrete steel, spring steel, cold heading steel, bearing steel, stainless steel and other steel, to meet the green building, high-end equipment and national defense military needs.
Module combination
The roll box and cone box constitute the standardized mill frame, and the compact 2 mills are a set of modules. Two rolling mills are driven by a main motor together to form the CDMC centralized drive module, and each rolling mill is driven by a main motor to form the IDMC independent drive module. Optional transmission, combined with water cooling box arrangement, flexible combination into a variety of wire rod temperature control rolling high speed zone rolling mill units.
Special steel high line :4 group module rolling mill +1 group reducing machine +1 group sizing machine
Superior steel high line :4 groups of module mill +1 group of reducing machine, or plus 1 group of sizing machine
Ordinary high line :3 group +2 group module rolling mill or 4 group +1 group module rolling mill
High speed bar :3 group or 2 group module mill
Technical parameters
Finished product specification: φ 5.5~ φ 32.0mm
Design speed ： 45 - 140 m/s
Guaranteed speed : 50 - 120m/s
Rolling temperature: ≥750℃
Reduction :25%~49%
Finished accuracy :±0.1mm
Finished ovality :0.12mm
