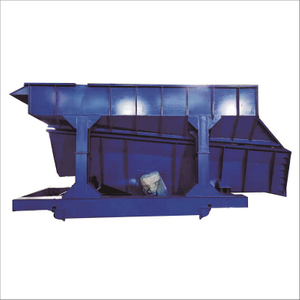

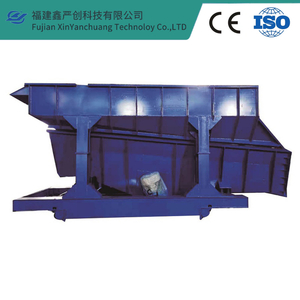

Product Description
Product Description
Main technical parameters (fine tuning after detailed design)
| Hopper loaded | ≤15m³；The deadweight is about 9 tons |
| The overall dimension of the equipment is L×W×H | 8225×2000×2450 |
| Vibration motor | 7.5kw×2台 |
| Walking motor | 7.5kw×1台 |
| Walking speed | 25m/min |
| Orbit model | 38Kg/m |
| Track spacing | 1600mm |
| Wireless remote control operation | Linear distance 100m (equipped with emergency ground control) |
| Electric voltage | 380V |
4. Technical innovation
1) The hopper discharge adopts vibration motor vibration mode, with high vibration frequency, so as to improve the work efficiency;
2) The electrical components are designed at the rear of the equipment, which can be far away from the feeding area and increase the reliability of the equipment operation;
3) Remote control (remote control) operation control mode is adopted to stop the machine freely and cut off the power supply in emergency;
4) The equipment is small in size and takes up less space; it is easy to operate and flexible to use.
