Product Description
Installed at the rear end of the corresponding equipment, horizontal or longitudinal arrangement, each furnace can be configured with 1 ~ 2 feeding cars.
The main function
1）Rapid concentration of steel scrap added to the designated equipment, reduce labor intensity, reduce labor costs.
2）The feeding vehicle realizes centralized feeding mode, reducing the frequency and time of feeding;
Improve efficiency and increase output.
3）Long distance transport of the feeding car, convenient dust treatment.
4）Equipment remote control operation, simple and convenient operation.
Main technical parameters
| Hopper loading | 15 m or less after;The deadweight is about 9 tons |
| The overall size of the equipment is L x W x H | 8225×2000×2450 |
| Vibrating motor | 7.5 kw x 2 sets |
| Moving motor | 7.5 kw x 1 sets |
| Speed of travel | 25m/min |
| Type of track | 38Kg/m |
| Spacing of orbits | 1600mm |
| Wireless remote control | Straight-line distance 100m (equipped with emergency ground control) |
| Electric cabinet voltage | 380V |

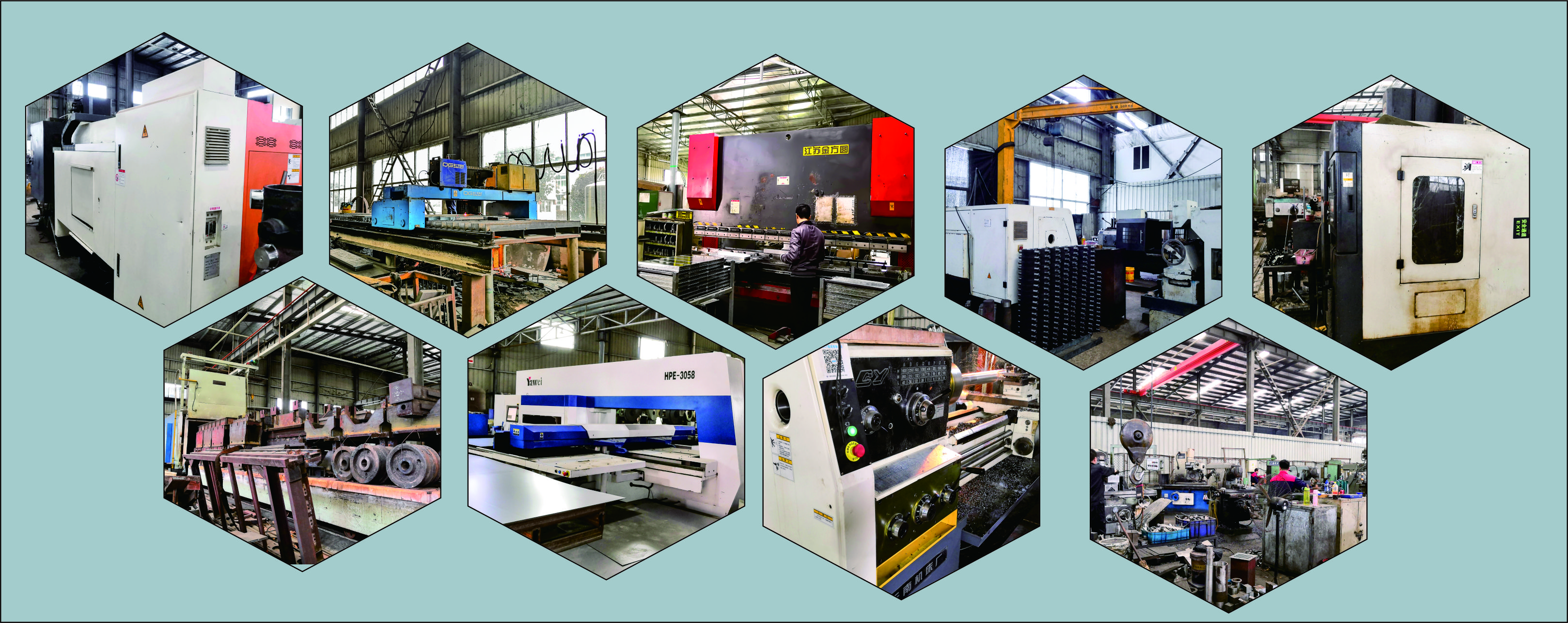

Shopwork
Fujian XinYanchuang Technology Co., Ltd. is located in Fuzhou, the central city of the economic zone on the west coast of the Straits of China.We have more than 130 employees, including 37% high-tech talents. At the same time, we cooperate with many universities and designing institutes to jointly develop and tackle various project projects. We were awarded as a Science and Technology Enterprise by The Science and Technology Department of Fujian Province in September 2016. In 2018, we were awarded as"National High-tech Enterprises", and won ISO 9001 Quality System Certificate and more than 60 patent certificates.
Hot product

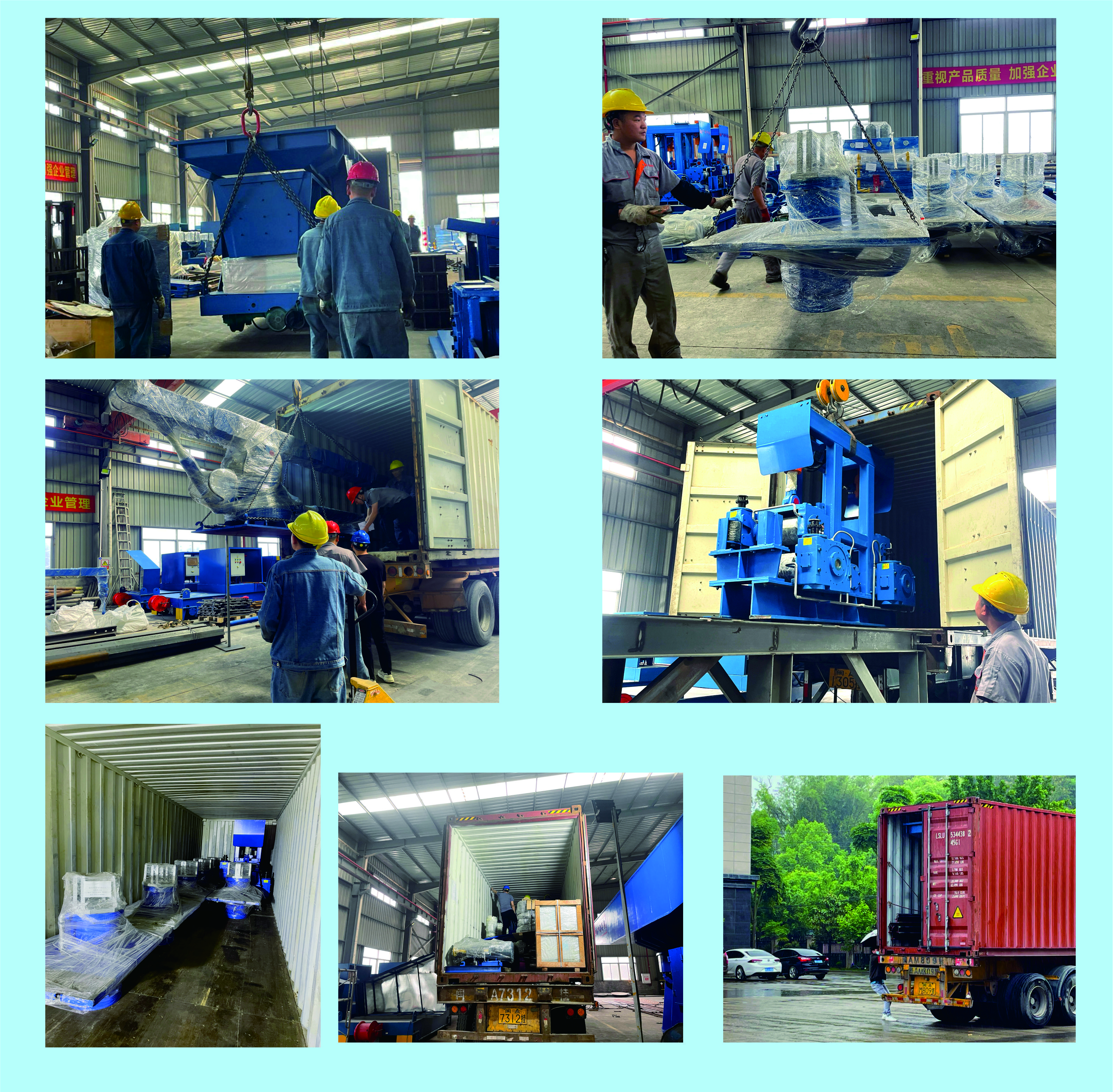

Packing and logistics
