Product Description
Function and structure

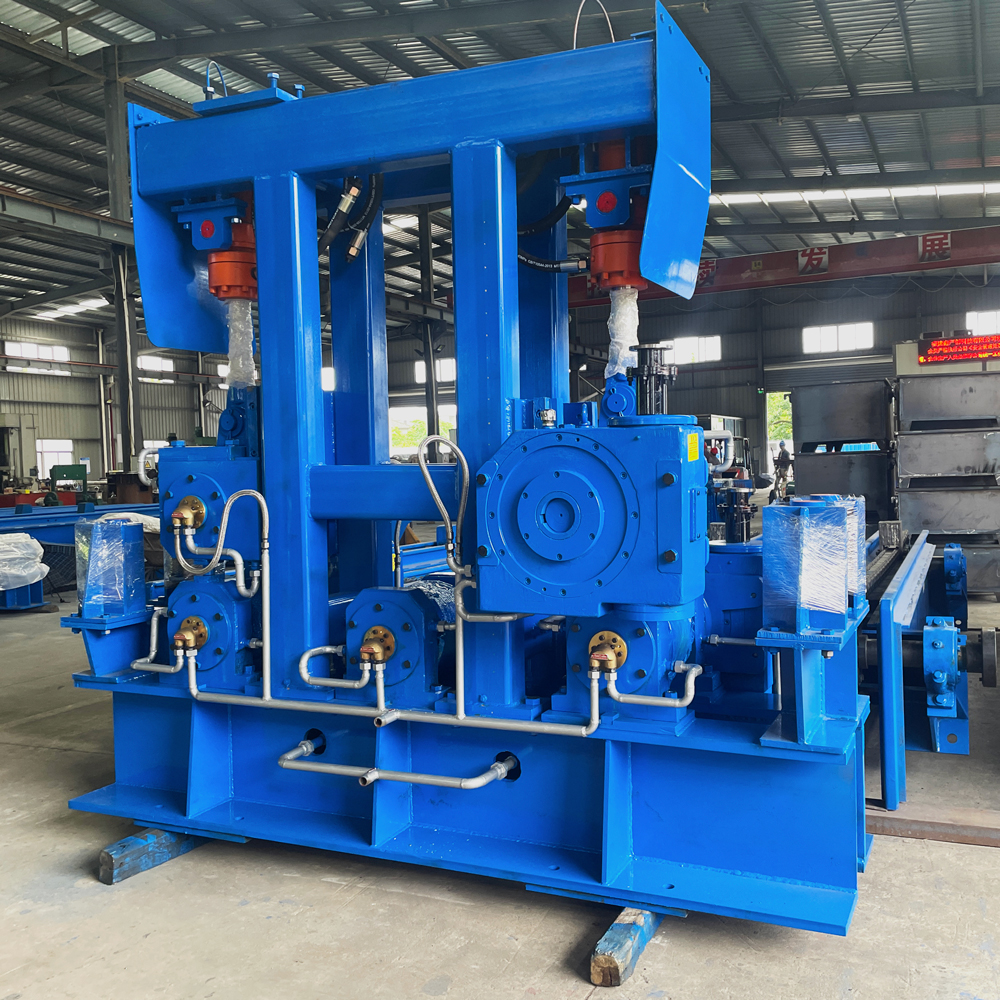

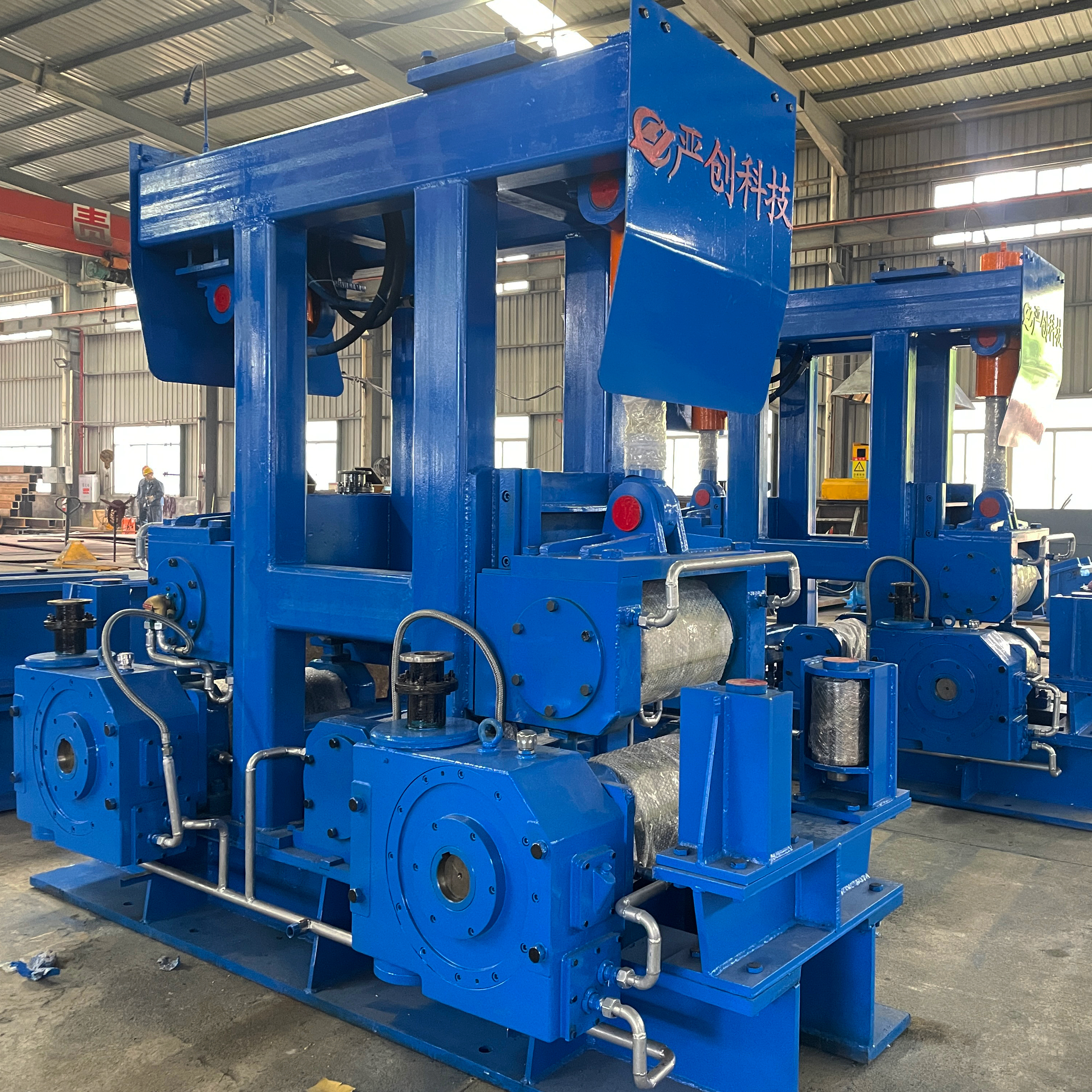

when casting, the tension straightening machine will continuously pull out and straighten the arc cast blank;When feeding the ingot, pull the straightening roller to reverse and feed the ingot head into the crystallizer.The continuous straightening straightening machine can make the casting slab produce continuous uniform deformation with low and stable deformation rate, overcome the peak straightening deformation rate, and greatly improve the surface and internal cracks of the casting slab, which is suitable for the production of high drawing speed and large section of the casting slab.Tension leveller consists of drive roller, driven roller, transmission device, frame structure, water cooling system and so on.
Main parameters:
| Type | Five roller continuous straightening drive |
| Motor power | 7.5KW YZP132S-4 |
| Speed | Nominal 1440r/min |
| Reducer | Total speed |
| Ratio | 1:320 |
| Drive roller | Quantity: 3 |
| Diameter | 300mm Roll |
